How to use the connector? In short, it is plugging and disconnecting, which is also the reason for the birth and existence of the connector. How to achieve connection and disconnection depends on the connection structure. There are many connection structures with different characteristics. The snap-on direct connection method is a widely adopted and applied connection structure type, which is favored by engineers for its simplicity, efficiency and speed.
What are the advantages of using snap-on direct connection for connectors?
|
Connector using snap-on direct connection design advantage sharing |
|
|
Easy and tool-free |
The snap design makes it very simple to connect and disconnect, no tools are required, and users can operate it easily. |
|
Efficient operation |
Can quickly connect and disconnect, suitable for frequent plugging and unplugging, saving time. |
|
Save space |
Snap connectors are often designed to be more compact, making them suitable for applications with limited space. |
|
More intuitive fool-proofing |
The snap-on connector has a very intuitive and conspicuous snap-on device on the back, which visually prevents mistakes and eliminates the need to worry about mis-insertion. |
|
Facilitates equipment maintenance |
For equipment maintenance, especially when the equipment needs to be maintained frequently, quick and convenient disconnection and connection of the connector can bring more convenience to the maintenance of the equipment. |
Recommended products BD series: plug and play, one-handed operation
BD Series：The "ceiling" of snap-on connectors
Good-looking & highly reliable quick connector
The streamlined body, hollow back and top make it an artwork version of the high profile is very impressive;
The snap button is made of zinc alloy, which is strong and rigid, so you don't have to worry about damage even if you press it frequently;
With high-strength and high-elasticity springs, it is not easy to loosen after locking, and there is no need to worry about sudden disconnection;

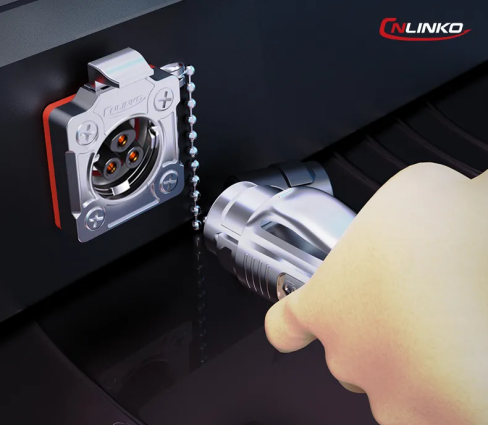

The snap-on plug-in connection structure makes connection and disconnection quick and easy, and provides a good one-handed operation experience;
It has better plugging and unplugging performance, and the electrical performance remains stable after 1700 plugging and unplugging times.
The BD series industrial waterproof connector is a pioneering work in the industry that has won the German Red Dot Design Award and the "Shenzhen Enterprise Innovation Record" award. It adopts an original design that combines a streamlined body with a hollow arc back top, achieving a new height and level of integration of industrial products and artistic aesthetics, and has been highly praised by the international mainstream design community.
As a connector with a snap-on plug-in connection structure, its snap device is located at the socket end, which is different from the traditional snap structure that is mostly designed at the plug end. It is unique and allows for more creativity in the plug structure. This is the premise for the artistic appearance of the BD series plugs. In addition, the snap at the socket end reduces the pressing frequency of the snap, which can better improve the service life of the snap device.
The BD series is a high-end flagship connector with outstanding highlights and obvious advantages. Its functions are very comprehensive, including power, signal (PIN type, RJ45, optical fiber) and data (USB, HDMI) and other connections, which can meet the multiple technical demands for connection of different devices in different scenarios.
One of the recommended industries: robotic arms
The robotic arm is an extremely important automated robot in the industrial field. It has advantages in repetitive and large-scale work and can enter and exit harsh and dangerous environments. As a power actuator, the robotic arm requires power input to drive it to perform a complete set of actions, so a power connector is required to transmit power. In view of the complexity and harshness of the industrial environment, the robotic arm basically uses an industrial-grade power connector with high reliability and high environmental tolerance.
The above-mentioned BD series industrial-grade connectors of CNLINKO have obvious advantages due to their snap-on plug-in connection structure. On the one hand, the connector can be installed very quickly, plug and play, and operated with one hand, which provides a very good experience. On the other hand, as industrial equipment, it needs to operate continuously for a long time, and equipment failure or regular maintenance is common. This snap-on connector can achieve quick disconnection and connection, which is more convenient for production maintenance.
Of course, this product also has the characteristics of high waterproofness (IP68 protection level), corrosion resistance (salt spray test time ≥48H), high and low temperature resistance (metal type: -40℃~85℃; plastic type: -25℃~85℃), flame retardancy, etc., which fully meet the strict technical requirements of the robot arm for the performance and environment of the required industrial-grade connectors.
At present, this product is also widely used in many fields such as automation equipment, electronic equipment, new energy, electromechanical equipment, mechanical equipment, instrumentation, ships, vehicle-mounted equipment, medical equipment, security, LED display, etc.
