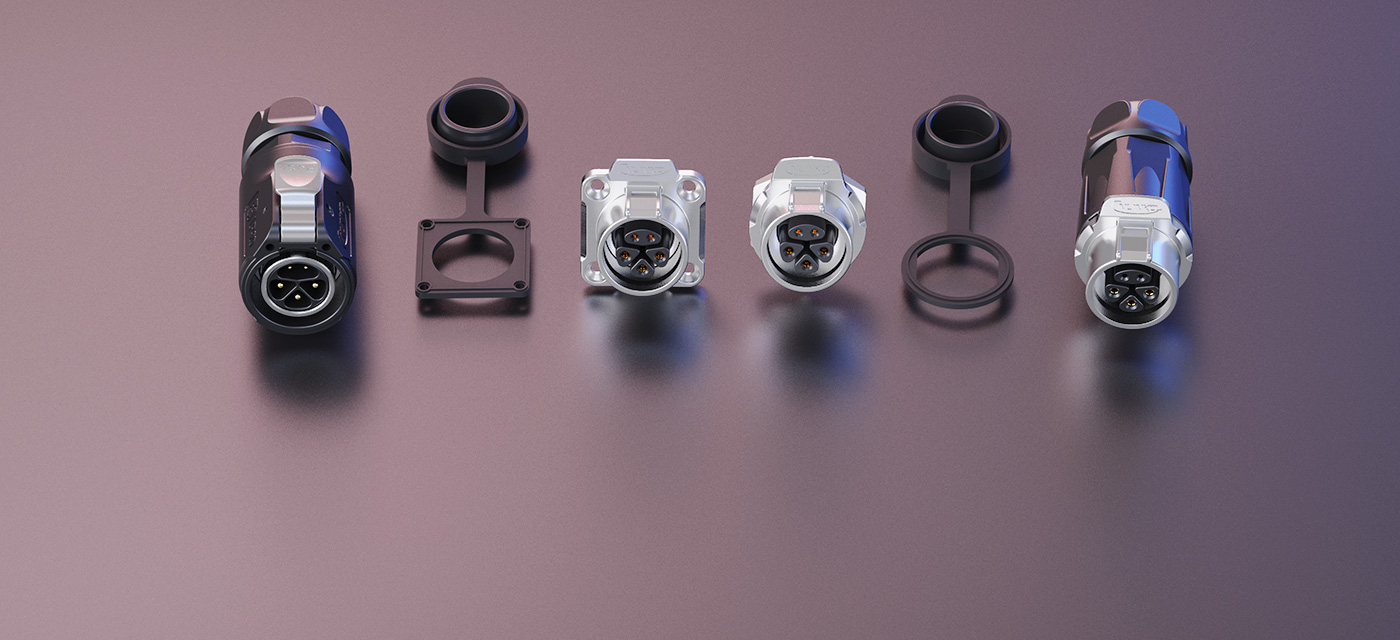

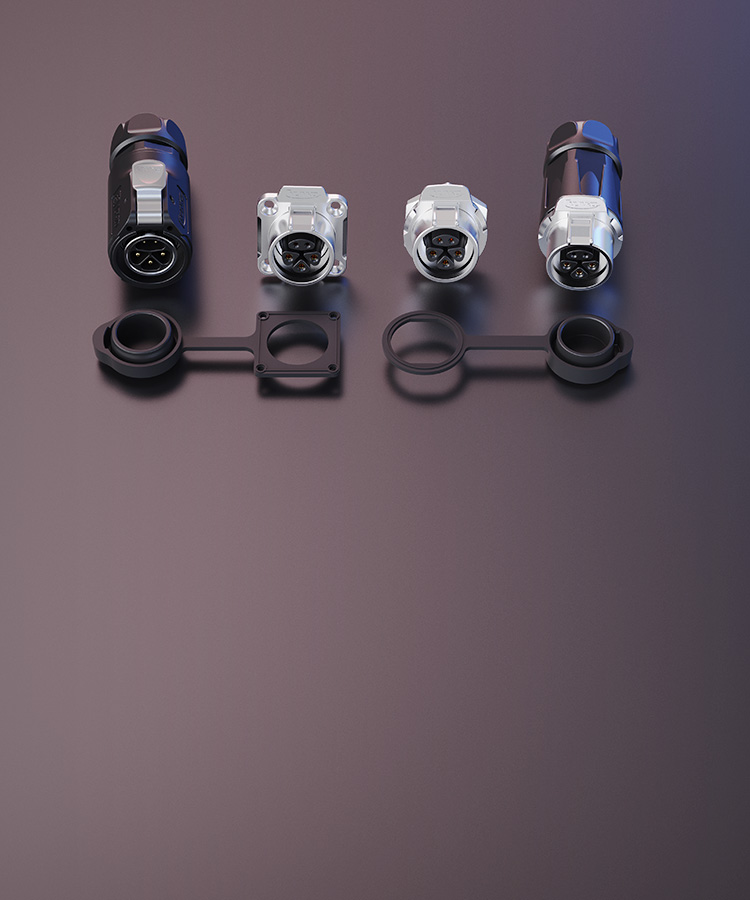

LP-20 3+2 Pin Industrial Circular Waterproof Hybrid Connector

Hybrid core design

Video

Product Size

M20

Pin

3+2 Pin

IP Grade

IP68 / IPX9K

Rated Current

15A

Rated Voltage

300V

Product Series

LP

Wiring Type

Soldering

Interface Type

Pin

Mating Cycles

≥2000 times
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Specifications
LP20-3-3
LP20-3-4
LP20-3-5
LP20-3-6
LP20-3-5-5

Plug + socket

Plug + socket

Male Plug

Four Socket

In-line receptacle

2#3+2爆炸图 2#3+2爆炸图

Dual power, dual-function core design: a perfect blend of compactness and electrical functionality.

Product Advantage

3#3+2优势图 3#3+2优势图
Plug-and-play | Quick and convenient | IP68 waterproof performance | Cold and heat resistant | Power and signal transmission
4#3+2空间更紧凑

Compact power/signal module integration saves space

Power/signal hybrid core integration: eliminates two connectors, reduces installation space.

5#特点-防水

IP68/IPX9K flagship waterproof

IP68/IPX9K tested: superior waterproofing, safer in complex wet environments.

7#3+2单手拔插

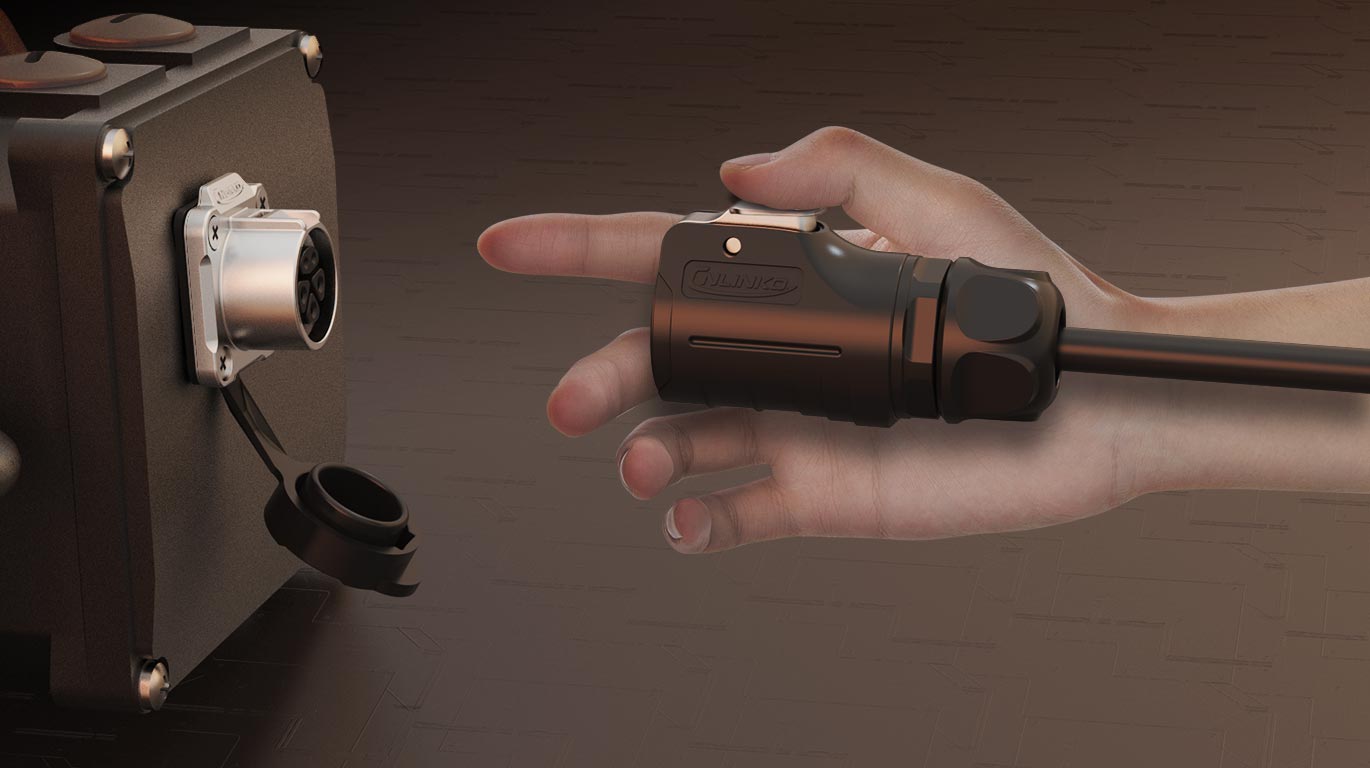

Snap-fit: one-hand quick connect/disconnect

Direct snap-fit design: fast, single-hand operation.

7#特点-恶劣天气

Reliable in industrial applications

High/low temperature resistance (plastic: -25℃ to +85℃, metal: -40℃ to +85℃), anti-corrosion, high flame resistance (UL94V-0).

Family series

08-家族图

Product Dimension

LP-20-2+3英文

Product Parameter

Model: LP-20 Pin: 3+2 Pin
IP Rating: IP68 / IPX9K Rated Current: 10A+5A
Rated Voltage: 300V AC Withstand Voltage: 1500V AC
Contact Resistance Max: 3.0mΩ / 5.0mΩ Insulation Resistance Min: 500MΩ
Contacts: φ1.8*3 / φ1.0*2 Durability: 2000 times
Wire Spec Max: 1.5~1.0mm²/16~18AWG
0.75~0.5mm²/18~20AWG
Wire range: Φ10.0-Φ12.0mm
Wiring method: Soldering Maximum temperature rise: 30k
Work Temperature: -25°C~+85°C(Plastic)
-40°C~+85°C(Metal)

Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
