For the connector, the transmission of power electricity is a very core and commonly used functions, in the connector use accounted for a greater proportion. Industrial grade connectors as a class of connector products used in complex and harsh application scenarios, how to ensure better power electrical transmission performance has been a subject of concern for manufacturers and engineers, the next step will be to introduce the connector how to realize the power transmission performance enhancement, as well as the introduction of the LP series of power connector products.
How can industrial grade connectors guarantee better power transfer performance?
|
How industrial grade connectors can achieve stronger power connection performance |
|
|
Highly conductive materials for contact parts
|
Highly conductive materials such as copper alloy are used for the base material of the contacts, and the surface layer of the contacts is gold-plated, silver-plated and other processing techniques, which have low contact resistance and higher conductive efficiency, and can realize stronger current transmission capability. |
|
More resistant to plugging and unplugging with less wear and tear
|
Contacts need to maintain stable current transfer performance during repeated plugging and unplugging and prolonged use. The surface is designed with gold plating on the nickel base to increase the service life of the contacts and reduce poor contact caused by wear. |
|
Secure connection and locking method
|
The connection locking method of the contacts should prevent the contacts from loosening or being damaged during frequent plugging and unplugging. For example, the use of self-locking structure, threaded connection or bayonet and other mechanical fixing methods. |
|
Anti-corrosion and anti-oxidation coating |
Contacts need to have a certain degree of corrosion and oxidation resistance. Metal plating (e.g. gold, silver) can be used to increase the corrosion resistance of the contacts, prolonging their service life and ensuring stable current transmission. |
|
Better environmental performance
|
Waterproof and dustproof, IP65 or above; high and low temperature resistance; vibration and shock resistance, resisting the impact of stress; shell corrosion resistance; UV resistance, especially outdoor long-term exposure of the connector. |
Recommended Products LP Series: Plug and Play, Efficient Power Transfer
Power transfer performance analysis of LP series industrial grade connectors.
The choice of power connection, fast and reliable.
- The contact parts are made of high-quality copper alloy, and the surface is processed by nickel-bottom gold plating. Not only is the power transmission efficient and reliable, the temperature rise change is small, but it is also plug-in-resistant and has long-lasting performance.
2. The connector adopts the button direct connection mode, spring self-locking, the connection coupling is more dense, there will be no loosening to affect the electrical performance of the connection, and do not have to worry about loosening generated by the substantial friction caused by excessive wear and tear of the male and female pin
3. Excellent environmental performance, waterproof IP68, anti-corrosion test ≥ 48H, F1 plastic UV resistance, etc., to protect the connector shell and the internal connector is not affected in the complex and harsh industrial, outdoor and other environments, the power transmission is more guaranteed!
4. Batches of professional laboratory testing, LP series connectors power transmission performance indicators to meet the design requirements, to meet the technical requirements of the standard specifications, more trustworthy!

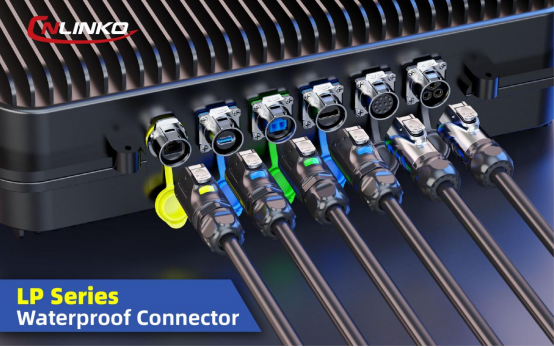

CNLINKO LP series of industrial grade connectors, as a continuing best-selling and very competitive classic design style connectors, its most notable feature is the button type direct connection, one-handed operation, a key insertion and removal, fast and simple. Its comprehensive functions, including power, signal and data, of which the power connector is the series is widely used in a class of connector products.
LP series power connectors, through the design and process and other initiatives to achieve a more outstanding power transmission performance, such as: the choice of high-quality copper alloy in the contact parts, supplemented by a thicker nickel bottom gold-plating process, while the male and female pins of the mating tolerance is smaller, the probability of wobbling is negligible, to avoid the wear and tear of male and female pins caused by excessive mating in the vibration and other stress, which can cause unstable or even sharp drop in electrical performance. Sharp drop. At the same time, the product has excellent environmental performance, such as high waterproof (waterproof grade IP68), high and low temperature resistance (metal models: -40 ~ +85 ℃; plastic models: -25 ~ +85 ℃), etc., to ensure the reliability of the connector and tolerance, which also indirectly protects the connector's power supply transmission of continuous high reliability, stability and security.
Such a classic masterpiece product, it has metal models, plastic models and metal + plastic models and other more comprehensive types, its function also covers power, signal (PIN pin class, fiber optic) and data (USB2.0, USB3.0, HDMI, Type-C) and other connectivity to meet the different scenarios of different devices on the connectivity of the multiple technical requirements.
Recommended Industry: Roadside Equipment
Roadside equipment is a key component of the intelligent transportation system, mainly used to monitor vehicle traffic and collect road data. Due to the roadside equipment is located in the environment for the constant flow of traffic on the road environment, facing the randomness of the outdoor environment and the harshness of the challenge, as well as road vehicles generated by the vibration and shock load interference and other factors, and therefore the intelligent transportation roadside equipment is more inclined to choose the industrial-grade connectors to assume the power connection.
Through the above analysis, we already know that the LP series power connectors in the design, material selection, structure and technology to ensure a more powerful power connection performance, can be achieved in a variety of complex and harsh operating environments, the power supply is reliable, stable and efficient transmission, and long-term use of the temperature rise change is small, the temperature change is not more than 30K, which for the need to 7 * 24H operation of the roadside equipment is very important. Of course, the powerful waterproof, corrosion resistance, vibration and shock resistance, high and low temperature resistance, as well as fast plugging and unplugging operations and other advantages, is also the roadside equipment to choose the LP series connectors are very key factors. In short, LP series power connectors are an excellent choice for realizing the power transmission function.
Of course, at present, this series of products are also widely used in automation equipment, electronic equipment, new energy, electromechanical equipment, mechanical equipment, instrumentation, ships, vehicle-mounted equipment, medical equipment, security, LED display and many other fields.
