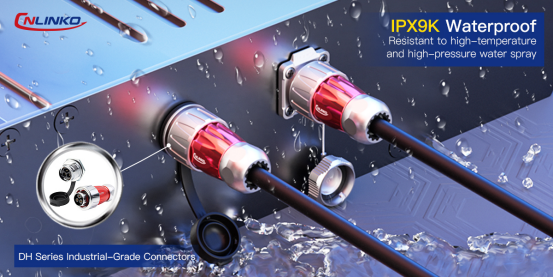

Waterproof ≠ High-Pressure Water Resistance! How CNLINKO’s IPX9K Waterproof Connector Withstands 80°C High-Pressure Water Blasts?

Release Date:Apr 04, 2025 Page Views:4 Source:CNLINKO

In industries like manufacturing, automotive, and renewable energy, the protective performance of connectors directly determines equipment reliability in extreme environments. The IPX9K standard, currently the "pinnacle" of international protection ratings, requires connectors to withstand 80±5°C high-temperature, 80-100 bar high-pressure water jets at close range. These brutal test conditions pose near-impossible challenges for sealing design. So, how does an IPX9K-rated connector achieve such exceptional waterproofing? What core technologies and design innovations make this possible?

How Severe is the IPX9K Test?

IPX9K is the highest international protection standard for high-temperature, high-pressure water resistance. It simulates scenarios such as:

Water Pressure Range:‌ 8,000–10,000 kPa, Flow Rate: 14–16 L/min;
Temperature Requirement:‌ Water temperature controlled at 80±5℃;
Spray Angle and Distance:‌ Nozzle-to-sample distance of 80–175 mm, spraying sequentially at four angles (0°, 30°, 60°, 90°), with 30 seconds duration per angle.

This means connectors must ensure complete internal sealing under extreme heat and water pressure, preventing any liquid ingress. Conventional waterproof connectors (e.g., IP67/IP68) with single-layer sealing structures cannot meet these demands.

3 Core Challenges in IPX9K Sealing Design

Challenge 01: High-Temperature Expansion and Material Tolerance

The 80±5°C environment can soften, deform, or degrade ordinary sealing materials. Insulators may lose functionality due to thermal deformation.

Challenge 02: Penetration Force of High-Pressure Water

80-100 bar water jets possess extreme penetrating power. Water molecules can infiltrate through interface gaps or threads, overwhelming traditional single-layer seals.

Challenge 03: Impact Resistance and Long-Term Stability

High-pressure water’s kinetic energy risks deforming connector housings or loosening locking mechanisms. Material fatigue from thermal cycling further degrades sealing longevity.

CNLINKO’s Breakthroughs in IPX9K Waterproof Technology

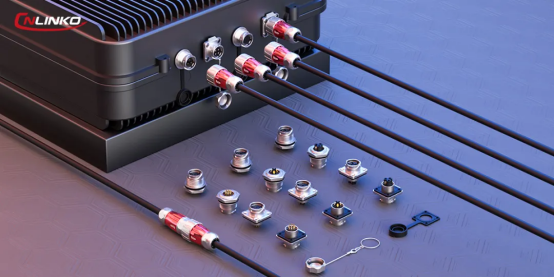

To overcome these challenges, CNLINKO has developed the IPX9K-rated DH16 Series Industrial Connector through a tri-faceted approach: innovative materials, structural design, and precision manufacturing.



01. High-Temperature Resistance: Advanced Material Engineering

  • Housing Material: Zinc alloy and aluminum alloy with hard anodization for low thermal expansion.
  • Sealing Material: Silicone rubber gaskets that endure extreme temperatures and sudden fluctuations.
  • Advantage: Minimal permanent compression deformation under 80±5°C water jets, preventing micro-gap leaks over time.

02. High-Pressure Sealing: Triple-Layer Defense

  • Layer 1: Pre-compressed silicone O-rings at housing-device interfaces to resist water impact.
  • Layer 2: Axial sealing rings between inserts and housings with ultra-tight tolerances.
  • Layer 3: Spiral locking mechanism + waterproof gaskets to block water ingress at coupling gaps.
  • Advantage: Passes 30-minute tests at 100 bar/80°C with zero internal moisture penetration.

03. Impact Resistance & Durability: Industrial-Grade Robustness

  • Housing Structure: CNC-machined for precision assembly and stability.
  • Locking Mechanism: Spiral coupling + triple-point locking, rated for >500 mating cycles.
  • Advantage: Complies with anti-vibration standards for high-shock applications like construction machinery and rail transit.


IPX9K: A Leap in Sealing Technology and Industrial Reliability

IPX9K-rated connectors represent not just a breakthrough in sealing technology but also an unwavering pursuit of industrial equipment reliability. By integrating material science, structural innovation, and precision engineering, CNLINKO has redefined high-performance industrial connectivity.

Looking for a connector that laughs in the face of high-pressure, high-temperature water? Explore CNLINKO’s IPX9K-rated DH16 Series – where cutting-edge engineering meets relentless durability.
